Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

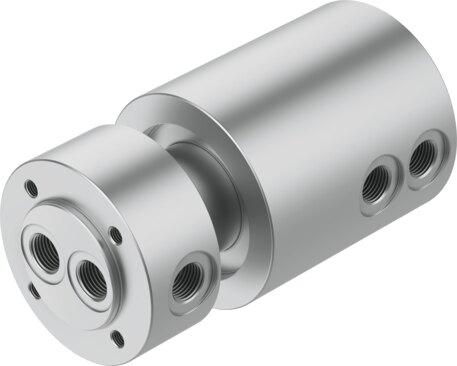

Reference imageConfirm configuration by manufacturer part number.
Festo
539288
Rotary distributor GF-1/4-2
The Festo 539288 industrial component features an 8 mm nominal width, a G1/4 pneumatic connection 1, a G1/4 pneumatic connection 2, and a 2950 g product weight housed in nickel-plated brass with a high-alloy steel shaft. It operates across any mounting position within a -10 °C to 80 °C ambient temperature range, supporting a -0.095 MPa to 1 MPa operating pressure and standard nominal flow rates of 1250 l/min for 1.1-2.1 and 2020 l/min for 1.2-2.2. The unit accommodates compressed air per ISO 8573-1:2010 [7:-:-] or liquid, ice-free water requiring a 5 µm filter, while tolerating a maximum rotational speed of 300 rpm, a 100 N max axial force, and a 300 N max radial force under CRC 1 low corrosion stress. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539288
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539288.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 8 mm
- Mounting position
- Any
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Standard nominal ow rate 1.1-2.1
- 1250 l/min
- Standard nominal ow rate 1.2-2.2
- 2020 l/min
- Max. rotational speed
- 300 rpm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Use 5 µm lter when operating with water | Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Max. axial force
- 100 N
- Max. radial force
- 300 N
- Product weight
- 2950 g
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Shaft material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 539288. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
