539289

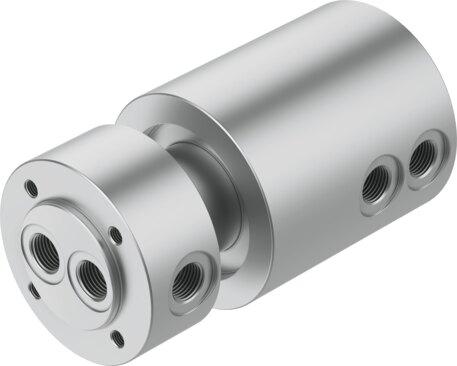

Name: Festo 539289 Rotary distributor GF-1/2-2
Brand: Festo

Rotary distributor GF-1/2-2

The Festo 539289 is an industrial component featuring a 15 mm nominal width and any mounting position, constructed with a nickel-plated brass housing and a high-alloy steel shaft. It operates with compressed air conforming to ISO 8573-1:2010 [7:-:-] or ice-free liquid water across an operating pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi) and an ambient temperature range of -10 °C to 80 °C. The unit achieves standard nominal flow rates of 4440 l/min for connection 1.1-2.1 and 7380 l/min for connection 1.2-2.2, while supporting a maximum rotational speed of 300 rpm, a maximum axial force of 100 N, and a maximum radial force of 400 N. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 539289
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 539289.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 15 mm
Mounting position: Any
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Standard nominal ow rate 1.1-2.1: 4440 l/min
Standard nominal ow rate 1.2-2.2: 7380 l/min
Max. rotational speed: 300 rpm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Information on operating and pilot media: Use 5 µm lter when operating with water | Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...80 °C
Max. axial force: 100 N
Max. radial force: 400 N
Product weight: 7380 g
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2
Note on materials: RoHS compliant
Housing material: Brass, nickel-plated
Shaft material: High-alloy steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 539289. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
