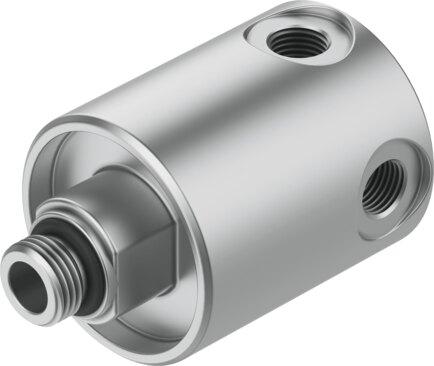

Reference imageConfirm configuration by manufacturer part number.
Festo
539290
Rotary distributor GF-1/8-M5
The Festo 539290 is an industrial component featuring a nominal width of 4.1 mm, a G1/8 pneumatic connection 1, and an M5 pneumatic connection 2, with a total product weight of 400 g. It supports an operating pressure of -0.095 MPa to 1 MPa across an ambient temperature range of -10 °C to 80 °C, utilizing compressed air conforming to ISO 8573-1:2010 [7:-:-] or ice-free liquid water. This model delivers a standard flow rate of 490 l/min for 1-2.1 (6->0) and 2250 l/min for 1-2.X open (6->0), while accommodating a maximum rotational speed of 3000 rpm, a max axial force of 50 N, and a max radial force of 150 N in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539290
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539290.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4.1 mm
- Mounting position
- Any
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Standard ow rate 1-2.1 (6->0)
- 490 l/min
- Standard ow rate 1-2.X open (6->0)
- 2250 l/min
- Max. rotational speed
- 3000 rpm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Use 5 µm lter when operating with water | Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Max. tightening torque
- 1.95 Nm
- Max. axial force
- 50 N
- Max. radial force
- 150 N
- Nominal tightening torque
- 1.22 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 400 g
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- M5
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Shaft material
- High-alloy steel
