539291

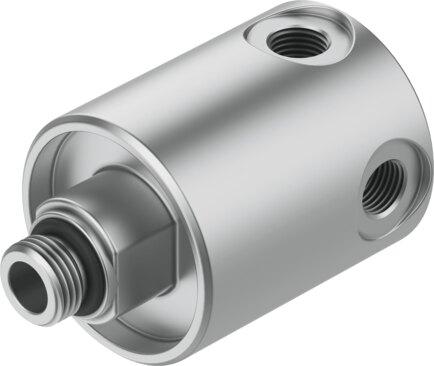

Name: Festo 539291 Rotary distributor GF-1/4-1/8
Brand: Festo

Rotary distributor GF-1/4-1/8

The Festo part number 539291 is an industrial component featuring an 8 mm nominal width, a G1/4 pneumatic connection 1, and a G1/8 pneumatic connection 2, with a total product weight of 370 g. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] or liquid water, supporting an operating pressure range of -0.095 MPa to 1 MPa and a standard flow rate of 1730 l/min from 1 to 2.1 (6->0). This component accommodates any mounting position, a maximum rotational speed of 3000 rpm, an ambient temperature range of -10 °C to 80 °C, and a corrosion resistance class of CRC 1. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 539291
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 539291.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 8 mm
Mounting position: Any
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Standard ow rate 1-2.1 (6->0): 1730 l/min
Standard ow rate 1-2.X open (6->0): 4050 l/min
Max. rotational speed: 3000 rpm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Information on operating and pilot media: Use 5 µm lter when operating with water | Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...80 °C
Max. tightening torque: 2.8 Nm
Max. axial force: 50 N
Max. radial force: 150 N
Nominal tightening torque: 1.65 Nm
Tolerance for nominal tightening torque: ±20%
Product weight: 370 g
Pneumatic connection 1: G1/4
Pneumatic connection 2: G1/8
Note on materials: RoHS compliant
Housing material: Brass, nickel-plated
Shaft material: High-alloy steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 539291. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
