539292

Name: Festo 539292 Rotary distributor GF-1/2-1/4
Brand: Festo

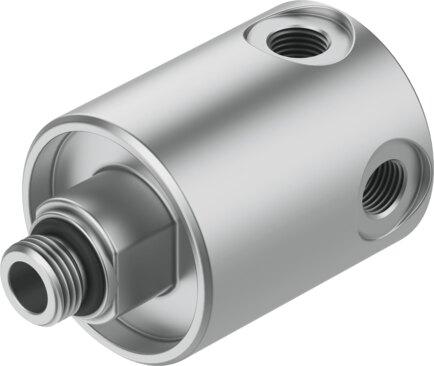

Rotary distributor GF-1/2-1/4

The Festo 539292 is an industrial component featuring a 15 mm nominal width and a G1/2 pneumatic connection 1 alongside a G1/4 pneumatic connection 2, supporting an operating pressure range of -0.95 bar to 10 bar across an ambient temperature range of -10 °C to 80 °C. It accommodates compressed air conforming to ISO 8573-1:2010 [7:-:-] or liquid, ice-free water, delivering a standard flow rate of 4050 l/min for 1-2.1 (6->0) and 14130 l/min for 1-2.X open (6->0) with a maximum rotational speed of 2500 rpm. Built with a product weight of 1190 g, a corrosion resistance class of CRC 1, and RoHS compliance, this unit withstands a maximum axial force of 50 N and a maximum radial force of 250 N. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 539292
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 539292.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 15 mm
Mounting position: Any
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Standard ow rate 1-2.1 (6->0): 4050 l/min
Standard ow rate 1-2.X open (6->0): 14130 l/min
Max. rotational speed: 2500 rpm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Information on operating and pilot media: Use 5 µm lter when operating with water | Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...80 °C
Max. tightening torque: 8 Nm
Max. axial force: 50 N
Max. radial force: 250 N
Nominal tightening torque: 4.25 Nm
Tolerance for nominal tightening torque: ±20%
Product weight: 1190 g
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/4
Note on materials: RoHS compliant
Housing material: Brass, nickel-plated
Shaft material: High-alloy steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 539292. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
