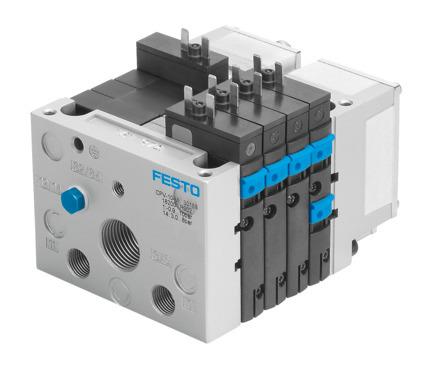

Reference imageConfirm configuration by manufacturer part number.
Festo
539506
Valve manifold assembly CPV10-EX-VI
Festo Valve manifold assembly CPV10-EX-VI, part number 539506, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 539506
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539506.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Electrical actuation
- Individual connection
- Valve terminal type
- 10
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...40 °C
- Degree of protection
- IP50 plug sockets | IP55 valve manifold
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | 2 - Moderate corrosion stress
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions | To UK RoHS instructions
- Certication
- c UL us - recognized (OL)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (CN) | Zone 1 (IEC-EX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (CN) | Zone 21 (IEC-EX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Explosion protection certication outside the EU
- EPL Db (CN) | EPL Db (GB) | EPL Db (IEC-EX)
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 539506. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
