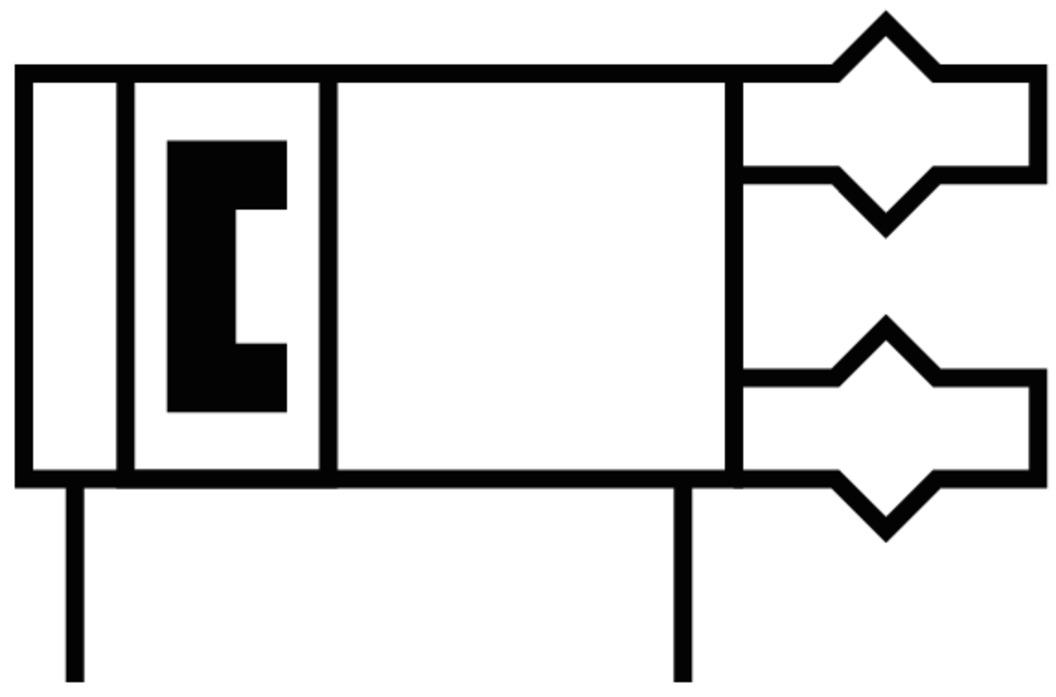

Reference imageConfirm configuration by manufacturer part number.
Festo
539636
Parallel gripper HGP-16-A-B-SSK
The Festo part number 539636 is a size 16 pneumatic parallel gripper featuring two jaws in a lever structural design with a double-acting mode of operation. It delivers a 5 mm stroke per gripper jaw, a repetition accuracy of 0.04 mm, a maximum interchangeability of 0.2 mm, and an operating pressure range of 2 bar to 8 bar. Compatible with proximity sensors for position sensing and mountable in any position, the unit operates with compressed air as per ISO 8573-1:2010 [7:4:4] at a maximum operating frequency of 4 Hz. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539636
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539636.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Stroke per gripper jaw
- 5 mm
- Max. interchangeability
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.04 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- Without
- Structural design
- Lever
- Position sensing
- For proximity sensor
- Operating pressure
- 2 bar...8 bar
- Max. operating frequency of pneumatic gripper
- 4 Hz
- Min. opening time at 6 bar
- 44 ms
- Min. closing time at 6 bar
- 60 ms
- Max. mass per external gripper finger
- 40 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Ambient temperature
- 5 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 140 N | 70 N
- Gripping force per gripper jaw at 6 bar, closing
- 160 N | 80 N
- Mass moment of inertia
- 0.47 kgcm²
- Maximum force on gripper jaw Fz, static
- 90 N
- Maximum torque on gripper jaw, Mx static
- 3.3 Nm
- Maximum torque on gripper jaw, My static
- 3.3 Nm
- Maximum torque on gripper jaw, Mz static
- 3.3 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 539636. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
