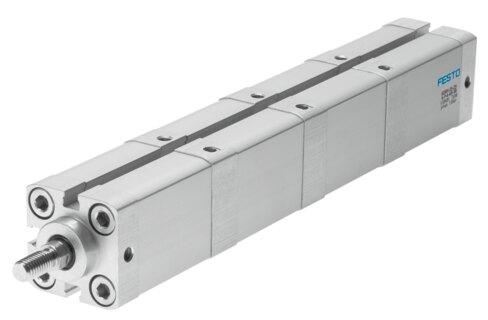

Reference imageConfirm configuration by manufacturer part number.
Festo
539694
High-force cylinder ADNH-100- -
The Festo part number 539694 is a double-acting industrial component featuring a 100 mm piston diameter, an adjustable stroke ranging from 5 mm to 150 mm, and a profile barrel structural design conforming to ISO 21287. Operating on compressed air within a pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar), this unit delivers a theoretical force of 4417 N retracting and 18281 N advancing at 6 bar using elastic cushioning rings at both ends. It accommodates any mounting position with G1/8 pneumatic connections, supports position sensing via proximity switch, and operates in ambient temperatures from -20 °C to 120 °C with moderate corrosion stress resistance (CRC 2). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539694
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539694.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm...150 mm
- Piston diameter
- 100 mm
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Extended external thread piston rod | Special thread on piston rod | Extended piston rod | Heat-resistant seals max. 120°C | Laser etched rating plate
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...120 °C
- Theoretical force at 6 bar, retracting
- 4417 N
- Theoretical force at 6 bar, advancing
- 18281 N
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy | Anodized
- Seals material
- TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 539694. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
