Festo
539695

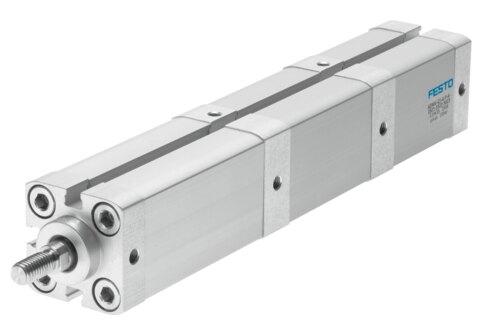

Multi stage pneumatic cylinder ADNM-25- -
The Festo 539695 is a double-acting industrial component with a 25 mm piston diameter and a profile barrel structural design based on ISO 21287, featuring elastic cushioning rings at both ends and position sensing via proximity switch. It operates within a pressure range of 0.08 MPa to 1 MPa and delivers a theoretical force of 295 N advancing and 247 N retracting at 6 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4]. This unit accommodates a last cylinder position stroke from 1 mm to 1000 mm, intermediate position strokes up to 200 mm with a maximum of 5 intermediate positions, and functions across an ambient temperature range of -20 °C to 120 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539695
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539695.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Piston diameter
- 25 mm
- Possible stroke of last cylinder position
- 1 mm...1000 mm
- Possible stroke of intermediate positions
- 1 mm...200 mm
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Prole barrel
- Max. number of intermediate positions
- 5
- Max. total of all individual strokes
- 1000 mm
- Position sensing
- Via proximity switch
- Variants
- Extended external thread piston rod | Special thread on piston rod | Extended piston rod | Heat-resistant seals max. 120°C | Laser etched rating plate
- Operating pressure
- 0.08 MPa...1 MPa | 0.8 bar...10 bar | 11.6 psi...145 psi
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...120 °C
- Theoretical force at 6 bar, retracting
- 247 N
- Theoretical force at 6 bar, advancing
- 295 N
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
