Festo
539696

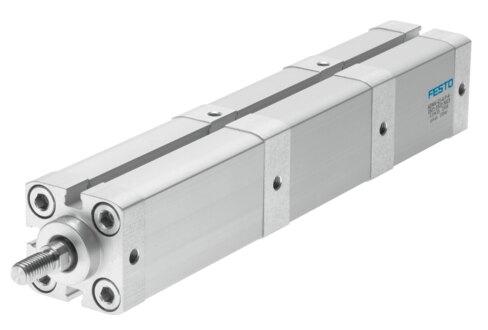

Multi stage pneumatic cylinder ADNM-40- -
The Festo part number 539696 is a double-acting industrial component with a 40 mm piston diameter and an ISO 21287 structural design featuring a piston, piston rod, and profile barrel. It operates on compressed air according to ISO 8573-1:2010 [7:4:4] within an operating pressure range of 0.08 MPa to 1 MPa (0.8 bar to 10 bar, 11.6 psi to 145 psi), delivering a theoretical force of 754 N advancing and 633 N retracting at 6 bar. This unit includes elastic cushioning rings at both ends, position sensing via proximity switch, and supports a last cylinder position stroke from 1 mm to 2000 mm with up to 5 intermediate positions. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539696
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539696.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Piston diameter
- 40 mm
- Possible stroke of last cylinder position
- 1 mm...2000 mm
- Possible stroke of intermediate positions
- 1 mm...300 mm
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Prole barrel
- Max. number of intermediate positions
- 5
- Max. total of all individual strokes
- 2000 mm
- Position sensing
- Via proximity switch
- Variants
- Extended external thread piston rod | Special thread on piston rod | Extended piston rod | Heat-resistant seals max. 120°C | Laser etched rating plate
- Operating pressure
- 0.08 MPa...1 MPa | 0.8 bar...10 bar | 11.6 psi...145 psi
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...120 °C
- Theoretical force at 6 bar, retracting
- 633 N
- Theoretical force at 6 bar, advancing
- 754 N
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 539696. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
