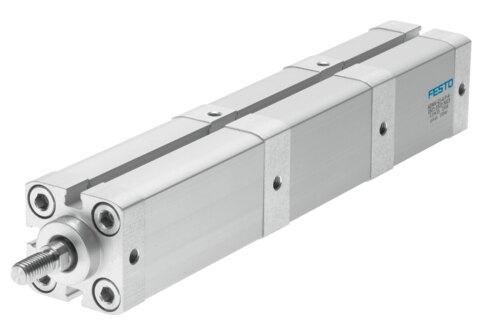

Reference imageConfirm configuration by manufacturer part number.
Festo
539698
Multi stage pneumatic cylinder ADNM-100- -
The Festo 539698 is a double-acting industrial component featuring a 100 mm piston diameter, a profile barrel structural design, and an ISO 21287 compliance basis. Operating between 0.06 MPa and 1 MPa (0.6 bar to 10 bar, 8.7 psi to 145 psi), this unit delivers a theoretical force of 4712 N advancing and 4417 N retracting at 6 bar using compressed air as per ISO 8573-1:2010 [7:4:4]. It includes elastic cushioning rings at both ends, accommodates stroke lengths from 1 mm to 2000 mm for the last cylinder position and 1 mm to 400 mm for intermediate positions, and functions within an ambient temperature range of -20 °C to 120 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539698
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539698.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Piston diameter
- 100 mm
- Possible stroke of last cylinder position
- 1 mm...2000 mm
- Possible stroke of intermediate positions
- 1 mm...400 mm
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Prole barrel
- Max. number of intermediate positions
- 5
- Max. total of all individual strokes
- 2000 mm
- Position sensing
- Via proximity switch
- Variants
- Extended external thread piston rod | Special thread on piston rod | Extended piston rod | Heat-resistant seals max. 120°C | Laser etched rating plate
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar | 8.7 psi...145 psi
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...120 °C
- Theoretical force at 6 bar, retracting
- 4417 N
- Theoretical force at 6 bar, advancing
- 4712 N
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 539698. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
