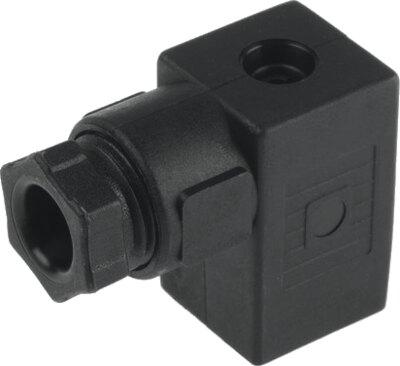

Reference imageConfirm configuration by manufacturer part number.
Festo
539711
Plug socket MSSD-E-M12
The Festo 539711 is an industrial component designed for mounting on air solenoid valves via an M3 central screw in any mounting position. This 11 g device features an angled socket with a rectangular 3-pin Form C electrical connection, a screw terminal, and an M12 cable fitting supporting cable diameters from 4 mm to 6 mm with a 0.75 mm² connection cross section. Built with a black reinforced PA housing, it operates within a DC voltage range of 0 V to 300 V, an AC voltage range of 0 V to 250 V, a current rating of 6 A at 40° C, and an ambient temperature range of -20 °C to 115 °C while achieving an IP65 degree of protection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539711
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539711.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Contact durability
- 50
- Type of mounting
- On air solenoid valve with M3 central screw
- Mounting position
- Any
- Product weight
- 11 g
- Electrical connection 1
- Angled socket, rectangular design, 3-pin, form C
- Electrical connection 2
- Screw terminal
- DC operating voltage range
- 0 V...300 V
- Operating voltage range AC
- 0 V...250 V
- Current rating at 40° C
- 6 A
- Cable tting
- M12
- Approved cable diameter
- 4 mm...6 mm
- Connection cross section
- 0.75 mm²
- Degree of protection
- IP65 | As per IEC 60529
- Ambient temperature
- -20 °C...115 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA-reinforced
- Housing colour
- Black
- Seals material
- HNBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 539711. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
