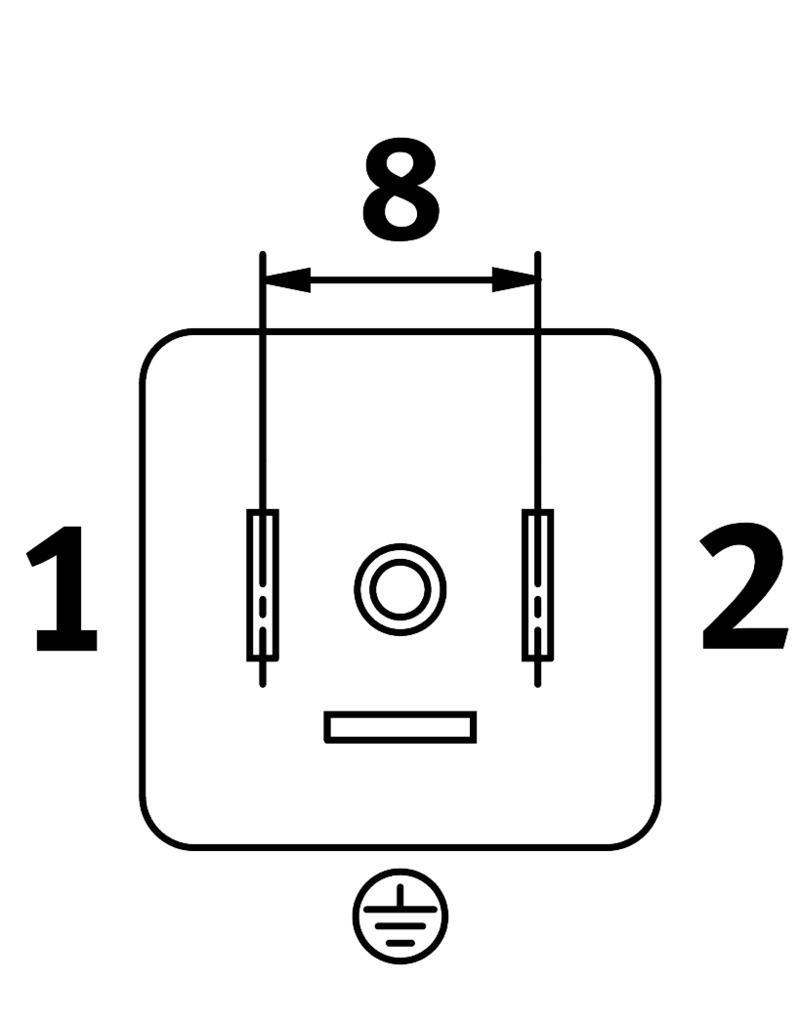

Reference imageConfirm configuration by manufacturer part number.
Festo
539712
Socket MSSD-EB-M12
The Festo part number 539712 is an industrial component featuring a 3-pin square socket conforming to EN 175301-803 form C for the field device side, and a 3-pin screw terminal for the control side. This 11 g component supports a DC operating voltage range from 0 V to 300 V and mounts onto air solenoid valves using an M2.5 central screw in any mounting position. The angled cable outlet accommodates 3 occupied wires and can be rotated through 90° with a contact durability of 50. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 539712
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 539712.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 175301-803
- Contact durability
- 50
- Cable outlet
- Angled
- Note on cable outlet
- Can be rotated through 90°
- Mounting position
- Any
- Product weight
- 11 g
- Electrical connection 1
- Socket, as per EN 175301-803, form C
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- Connection diagram type C as per EN 175301-803
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 1, type of mounting
- On air solenoid valve with M2.5 central screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Screw terminal
- Electrical connection 2, number of pins/wires
- 3
- Electrical connection 2, occupied pins/wires
- 3
- DC operating voltage range
- 0 V...300 V
- Operating voltage range AC
- 0 V...250 V
- Current rating at 40° C
- 6 A
- Surge resistance
- 4 kV
- Protective earth connection
- Available
- Cable tting
- Pg7
- Cable diameter
- 4 mm...6 mm
- Connection cross section
- 0.5 mm²...1.5 mm²
- Degree of protection
- IP67
