Festo
540011
Vacuum generator OVEM-14-H-B-QO-OE-N-2N

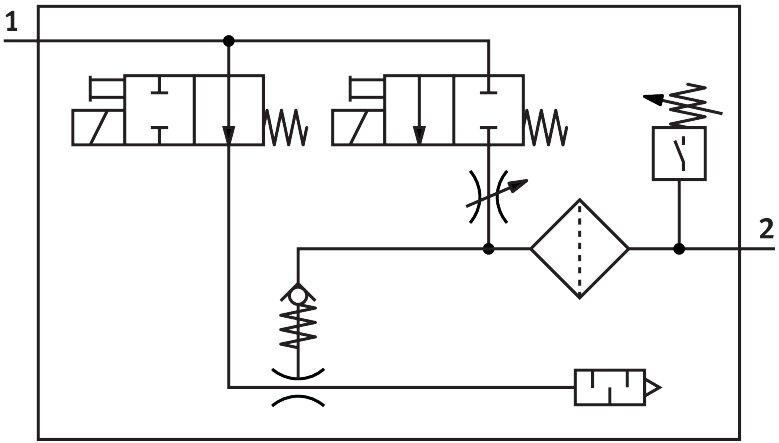

The Festo part number 540011 is a modular industrial component featuring a 1.4 mm nominal width Laval nozzle, a 20 mm width dimension, an open muffler construction type, and an any mounting position. It incorporates an electric ejector pulse valve, flow control valve, electric on-off valve, filter, electric air-saving function, check valve, open muffler, and vacuum switch, providing high vacuum and standard ejector characteristics with 40 µm filtration. The unit includes a piezoresistive measuring principle for relative pressure, a 4-digit alphanumeric backlit LCD display with a -0.999 bar to 0 bar display range in bar units, non-detenting manual override also via control keys, short-circuit protection, and reverse polarity protection for all electrical connections. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540011
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540011.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 1.4 mm
- Width dimension
- 20 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting | Also via control keys
- Integrated function
- Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Filter | Electric air-saving function | Check valve | Muffler open | Vacuum switch
- Structural design
- Modular
- Short-circuit protection
- Yes
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- NC contact | N.O. contact
- Switching function
- Window comparator | Threshold value comparator
- Valve function
- Open
- Reverse polarity protection
- for all electrical connections
- Switching input to standard
- IEC 61131-2
- Display type
- 4-digit, alphanumeric | Backlit LCD
- Display range
- -0.999 bar...0 bar
- Displayable unit(s)
- bar
- Setting range hysteresis
- -0.9 bar...0 bar
- Setting options
- Via display and keys
- Switching position indication
- LCD
