Festo
540017
Vacuum generator OVEM-14-H-B-GO-CE-N-2P

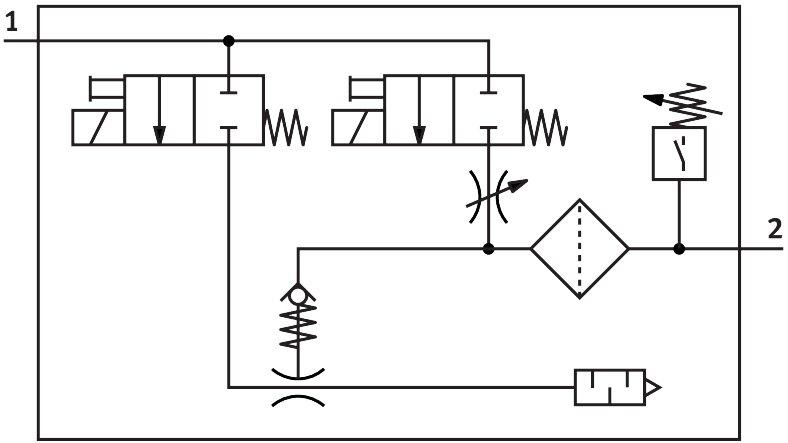

This modular industrial component from Festo features a nominal Laval nozzle width of 1.4 mm, a 20 mm width dimension, and an open muffer construction type that accommodates any mounting position with standard, high-vacuum ejector characteristics. The integrated design incorporates an electric ejector pulse valve, flow control valve, electric on-off valve, filter, electric air-saving function, check valve, open muffle, vacuum switch, and a piezoresistive relative pressure measuring principle displayed via a 4-digit backlit alphanumeric LCD ranging from -0.999 bar to 0 bar. Electrical connections include short-circuit protection, reverse polarity protection, switching inputs to IEC 61131-2 standards, non-detenting manual override with control keys, and configurable NC/NO switching element functions supporting window or threshold value comparators. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540017
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540017.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 1.4 mm
- Width dimension
- 20 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting | Also via control keys
- Integrated function
- Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Filter | Electric air-saving function | Check valve | Muffler open | Vacuum switch
- Structural design
- Modular
- Short-circuit protection
- Yes
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- NC contact | N.O. contact
- Switching function
- Window comparator | Threshold value comparator
- Valve function
- Closed
- Reverse polarity protection
- for all electrical connections
- Switching input to standard
- IEC 61131-2
- Display type
- 4-digit, alphanumeric | Backlit LCD
- Display range
- -0.999 bar...0 bar
- Displayable unit(s)
- bar
- Setting range hysteresis
- -0.9 bar...0 bar
- Setting options
- Via display and keys
- Switching position indication
- LCD
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540017. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
