Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

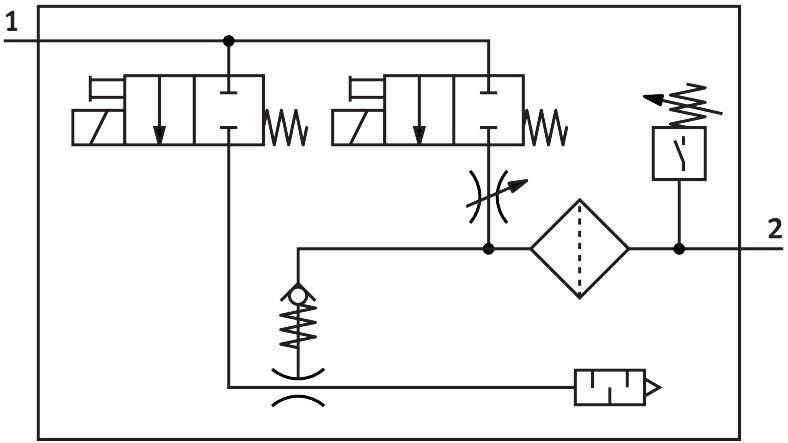

Reference imageConfirm configuration by manufacturer part number.
Festo
540024
Vacuum generator OVEM-14-H-B-QO-CE-N-1P
The Festo part number 540024 is an industrial component featuring a modular structural design with a 20 mm width dimension and an open muffler construction type supporting any mounting position. This unit integrates an electric ejector pulse valve, flow control valve, electric on-off valve, filter, check valve, open muffler, and a vacuum switch utilizing a piezoresistive measuring principle for relative pressure with a piezoresistive measuring principle, a 1.4 mm nominal width Laval nozzle, and high vacuum standard ejector characteristics. Additional features include a 40 µm grade of filtration, non-detenting manual override, LED display and switching position indication, teach-in setting options, short-circuit and reverse polarity protection for all electrical connections, a N.O. contact switching element function, and switching functions supporting a threshold value comparator and threshold value with fixed hysteresis with switching inputs to IEC 61131-2 standards. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540024
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540024.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 1.4 mm
- Width dimension
- 20 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Filter | Check valve | Muffler open | Vacuum switch
- Structural design
- Modular
- Short-circuit protection
- Yes
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- N.O. contact
- Switching function
- Threshold value comparator | Threshold value with xed hysteresis
- Valve function
- Closed
- Reverse polarity protection
- for all electrical connections
- Switching input to standard
- IEC 61131-2
- Display type
- LED
- Setting options
- Teach-in
- Switching position indication
- LED
- Switching status indication
- Optical
- Setting range threshold value
- -1 bar...0 bar
- Operating pressure
- 2 bar...8 bar
- Operating pressure for max. vacuum
- 3.6 bar
- Max. vacuum
- 93 %
- Nominal operating pressure
- 6 bar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540024. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
