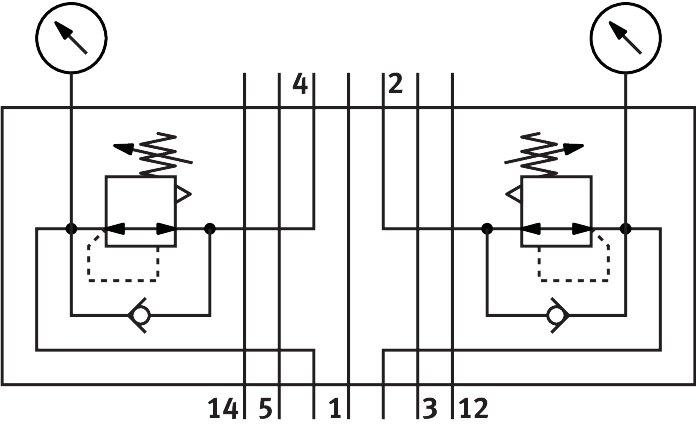

Name: Festo 540164 Regulator plate VABF-S4-1-R4C2-C-6
Brand: Festo

Regulator plate VABF-S4-1-R4C2-C-6

The Festo part number 540164 is a 26 mm industrial component built on the ISO 15407-2 norm with an IP65 and NEMA 4 degree of protection, featuring a constant output pressure controller function with secondary exhausting and an operating pressure of 0.6 MPa (6 bar). It operates within a pressure regulation range of 0.02 MPa to 0.6 MPa (0.2 bar to 6 bar, or 2.9 psi to 87 psi) using compressed air as per ISO 8573-1:2010 [7:4:4] and accommodates an inlet pressure 1 of 0.5 bar to 10 bar alongside an ambient temperature range of -5 °C to 50 °C. Weighing 692 g, this unit carries CE and UKCA markings as per respective electrical equipment directives and exhibits a corrosion resistance class of CRC 0 with VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 540164
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 540164.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 26 mm
Based on norm: ISO 15407-2
Mounting position: Any
Controller function: Constant output pressure | With secondary exhausting
Optional pressure gauge: Possible
Operating pressure: 0.6 MPa | 6 bar
Pressure regulation range MPa: 0.02 MPa...0.6 MPa
Pressure regulation range: 0.2 bar...6 bar
Pressure regulation range psi: 2.9 psi...87 psi
Inlet pressure 1: 0.5 bar...10 bar
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature: -5 °C...50 °C
Product weight: 692 g
Vertical stacking mounting type: On manifold sub-base | On individual sub-base
Pressure gauge connection: With retaining clamp
Material of operator panel: PA
Controller housing material: Die-cast aluminum
