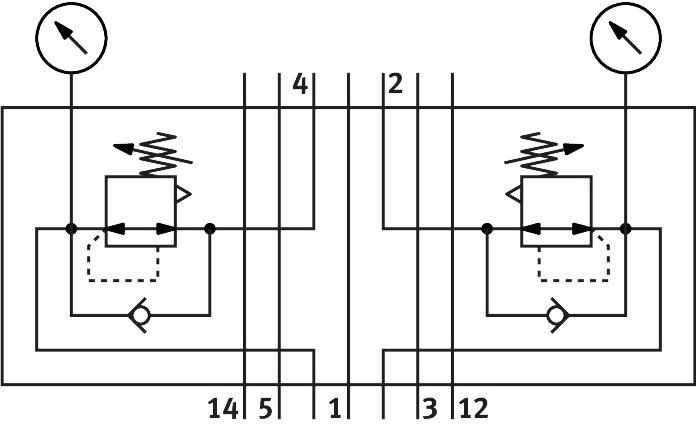

Reference imageConfirm configuration by manufacturer part number.
Festo
540165
Regulator plate VABF-S4-2-R4C2-C-10
The Festo 540165 is an industrial component featuring an 18 mm width, an ISO 15407-2 design basis, and any mounting position with a product weight of 611 g. It delivers constant output pressure with secondary exhausting across a pressure regulation range of 0.2 MPa to 0.85 MPa (2 bar to 8.5 bar, 29 psi to 123.25 psi) at an operating pressure up to 1 MPa (10 bar) and inlet pressure from 0.5 bar to 10 bar, supporting compressed air operating and pilot media per ISO 8573-1:2010 [7:4:4] with optional oil lubrication and an optional pressure gauge. Rated for an ambient temperature range of -5 °C to 50 °C, IP65 and NEMA 4 protection, CRC 0 corrosion resistance, and VDMA24364-B1/B2-L LABS conformity, it includes CE marking per the EU low voltage directive and UKCA marking for electrical equipment. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540165
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540165.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 18 mm
- Based on norm
- ISO 15407-2
- Mounting position
- Any
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Operating pressure
- 1 MPa | 10 bar
- Pressure regulation range MPa
- 0.2 MPa...0.85 MPa
- Pressure regulation range
- 2 bar...8.5 bar
- Pressure regulation range psi
- 29 psi...123.25 psi
- Inlet pressure 1
- 0.5 bar...10 bar
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 611 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pressure gauge connection
- With retaining clamp
- Material of operator panel
- PA
- Controller housing material
- Die-cast aluminum
