Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
540171

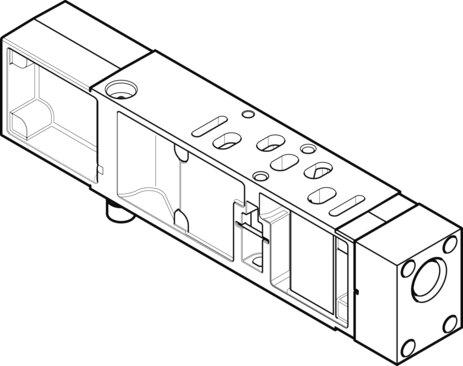

Vertical pressure supply plate VABF-S4-1-P1A3-G14
The Festo 540171 is an industrial component housed in die-cast aluminum with a width of 26 mm and a product weight of 191 g, built in accordance with the ISO 15407-2 norm. It operates at a maximum pressure of 1 MPa or 10 bar using compressed air as per ISO 8573-1:2010 [7:4:4] for both operating and pilot media, supporting optional or subsequently required oil lubrication within an ambient temperature range of -5 °C to 50 °C. Featuring IP65 and NEMA 4 degrees of protection, a corrosion resistance class of CRC 0, and VDMA24364-B1/B2-L LABS conformity, this unit mounts vertically on either a manifold sub-base or an individual sub-base in any position while carrying CE and UKCA markings for electrical equipment. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540171
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540171.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 26 mm
- Based on norm
- ISO 15407-2
- Mounting position
- Any
- Operating pressure
- 1 MPa | 10 bar
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 191 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540171. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
