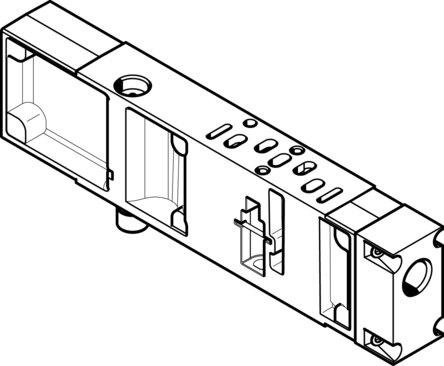

Reference imageConfirm configuration by manufacturer part number.
Festo
540174
Vertical pressure supply plate VABF-S4-2-P1A3-N18
The Festo 540174 is an industrial component housed in die-cast aluminum with an 18 mm width, a 140 g product weight, and a CRC 0 corrosion resistance class rating. Built on the ISO 15407-2 norm with an IP65 and NEMA 4 degree of protection, it operates at pressures up to 1 MPa or 10 bar within an ambient temperature range of -5 °C to 50 °C using compressed air as per ISO 8573-1:2010 [7:4:4]. This unit features 1/8 NPT pneumatic connection 1, supports vertical stacking on a manifold sub-base or individual sub-base in any mounting position, and carries CE and UKCA markings. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540174
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540174.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 18 mm
- Based on norm
- ISO 15407-2
- Mounting position
- Any
- Operating pressure
- 1 MPa | 10 bar
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 140 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pneumatic connection 1
- 1/8 NPT
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540174. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
