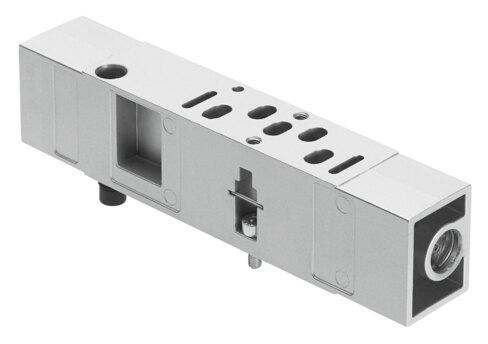

Reference imageConfirm configuration by manufacturer part number.
Festo
540175
Throttle plate VABF-S4-1-F1B1-C
The Festo 540175 is an industrial component featuring a width of 26 mm and a die-cast aluminum housing built to ISO 15407-2 norms. Operating at a maximum pressure of 1 MPa (10 bar) and supporting compressed air media per ISO 8573-1:2010 [7:4:4], this part provides IP65 and NEMA 4 degree of protection within an ambient temperature range of -5 °C to 50 °C. It accommodates vertical stacking on a manifold sub-base or individual sub-base, weighs 320 g, and carries both CE and UKCA markings. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540175
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540175.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 26 mm
- Based on norm
- ISO 15407-2
- Mounting position
- Any
- Operating pressure
- 1 MPa | 10 bar
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 320 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540175. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
