Festo
540222

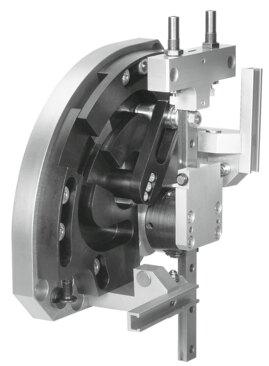

Handling module HSW-10-AP
The Festo part number 540222 is an industrial component featuring a structural design combining a linear guide plus ball bearing, a quarter turn actuator, and a positively driven motion sequence with a working stroke of 9 mm to 15 mm, a Z-stroke of 80 mm to 100 mm, and a max linear stroke at a 90° swivel angle of 90/90 mm. Operating at a pressure range of 4 bar to 8 bar on compressed air as per ISO 8573-1:2010 [7:-:-], this size 10 unit achieves a repetition accuracy at end positions of +/-0.02 mm, a minimum cycle time of 0.6 s, and accommodates a maximum payload of 0.5 kg alongside maximum Mx, My, and Mz torques of 0.6 Nm. It includes pneumatic shock absorbers with a soft characteristic curve at both ends, position sensing via proximity switch, LABS conformity to VDMA24364-B2-L, and an ambient temperature operating range of 0 °C to 60 °C in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540222
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540222.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 9 mm...15 mm
- Size
- 10
- Max. linear stroke at 90° swivel angle
- 90/90 mm
- Z-stroke
- 80 mm...100 mm
- Cushioning
- Pneumatic shock absorber at both ends | Soft characteristic curve
- Mounting position
- Any
- Structural design
- Linear guide plus ball bearing | Quarter turn actuator | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Minimum cycle time
- 0.6 s
- Repetition accuracy end positions
- +/-0.02 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. torque Mx
- 0.6 Nm
- Max. torque My
- 0.6 Nm
- Max. torque Mz
- 0.6 Nm
- Max. payload
- 0.5 kg
- Maximum process force in y direction
- 30 N
- Theoretical force at 6 bar
- 30 N
- Product weight
- 1250 g
- Type of mounting
- Via through-hole and centering sleeve
- Pneumatic connection
- M3
- Stops material
- High-alloy steel
- Spring pressure piece material
- High-alloy steel
- Base plate material
- Wrought aluminum alloy | Anodized
- Retainer bracket material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540222. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
