Festo
540233

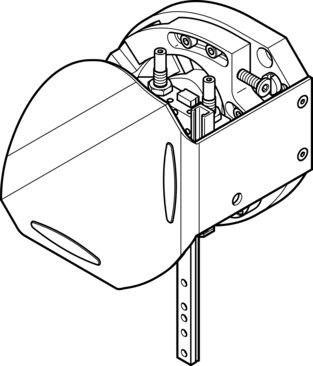

Handling module HSW-12-AS-SD
The Festo part number 540233 is an industrial component featuring a structural design of an actuator shaft, linear guide plus ball bearing, and positively driven motion sequence with a size 12 and product weight of 3000 g. It provides a working stroke of 15 mm to 25 mm, a Z-stroke of 80 mm to 100 mm, a max linear stroke at 90 degrees swivel angle of 142/142 mm, and a repetition accuracy at end positions of +/-0.02 mm. Operating within an ambient temperature range of 0 degrees C to 60 degrees C, this unit achieves a max driving torque on the actuator shaft of 1.25 Nm, max axial force of 18 N, max radial force of 45 N, max payload of 1 kg, and max process force in the y direction of 35 N. Cushioning is delivered via acoustic insulation buffers, position sensing occurs through proximity switches, and the unit complies with LABS VDMA24364-B2-L conformity for any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540233
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540233.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 15 mm...25 mm
- Size
- 12
- Max. linear stroke at 90° swivel angle
- 142/142 mm
- Z-stroke
- 80 mm...100 mm
- Cushioning
- Acoustic insulation via buffers
- Mounting position
- Any
- Structural design
- Actuator shaft | Linear guide plus ball bearing | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Repetition accuracy end positions
- +/-0.02 mm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. driving torque on actuator shaft
- 1.25 Nm
- Max. axial force at actuator shaft
- 18 N
- Max. torque Mx
- 1.5 Nm
- Max. torque My
- 1.5 Nm
- Max. torque Mz
- 1.5 Nm
- Max. payload
- 1 kg
- Max. radial force on actuator shaft
- 45 N
- Maximum process force in y direction
- 35 N
- Product weight
- 3000 g
- Type of mounting
- Via through-hole and centering sleeve
- Stops material
- High-alloy steel
- Cover material
- Wrought aluminum alloy | Anodized
- Spring pressure piece material
- High-alloy steel
- Base plate material
- Wrought aluminum alloy | Anodized
- Retainer bracket material
- Wrought aluminum alloy | Anodized
- Cross guide material
- Quenched and tempered steel
- Swivel lever material
- Case-hardened steel
