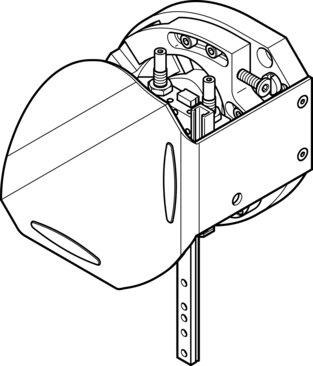

Reference imageConfirm configuration by manufacturer part number.
Festo
540239
Handling module HSW-16-AS-SD
The Festo 540239 is an industrial component featuring a size 16 structural design with an actuator shaft, linear guide plus ball bearing, and a positively driven motion sequence supporting a working stroke of 20 mm to 35 mm and a Z-stroke of 80 mm to 100 mm. This unit delivers a maximum driving torque and torque Mx, My, and Mz of 2.5 Nm, a maximum axial force of 30 N, a maximum radial force of 75 N, a maximum process force of 50 N in the y direction, a maximum linear stroke of 175/175 mm at a 90° swivel angle, and a maximum payload of 5200 g with a product weight of 5200 g. Operating within an ambient temperature range of 0 °C to 60 °C, it includes acoustic insulation via buffers for cushioning, position sensing via proximity switch, end-position repetition accuracy of +/-0.02 mm, VDMA24364-B2-L LABS conformity, and any mounting position capability. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540239
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540239.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 20 mm...35 mm
- Size
- 16
- Max. linear stroke at 90° swivel angle
- 175/175 mm
- Z-stroke
- 80 mm...100 mm
- Cushioning
- Acoustic insulation via buffers
- Mounting position
- Any
- Structural design
- Actuator shaft | Linear guide plus ball bearing | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Repetition accuracy end positions
- +/-0.02 mm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. driving torque on actuator shaft
- 2.5 Nm
- Max. axial force at actuator shaft
- 30 N
- Max. torque Mx
- 2.5 Nm
- Max. torque My
- 2.5 Nm
- Max. torque Mz
- 2.5 Nm
- Max. payload
- 1.5 kg
- Max. radial force on actuator shaft
- 75 N
- Maximum process force in y direction
- 50 N
- Product weight
- 5200 g
- Type of mounting
- Via through-hole and centering sleeve
- Stops material
- High-alloy steel
- Cover material
- Wrought aluminum alloy | Anodized
- Spring pressure piece material
- High-alloy steel
- Base plate material
- Wrought aluminum alloy | Anodized
- Retainer bracket material
- Wrought aluminum alloy | Anodized
- Cross guide material
- Quenched and tempered steel
- Swivel lever material
- Case-hardened steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540239. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
