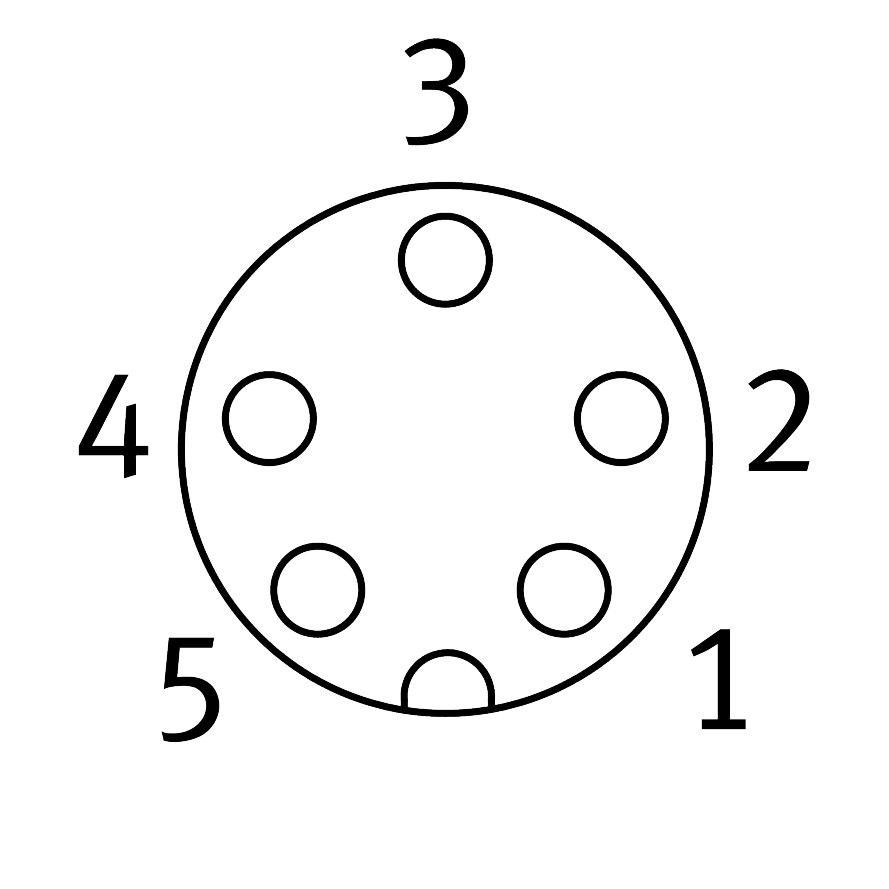

Reference imageConfirm configuration by manufacturer part number.
Festo
540327
Connecting cable KVI-CP-3-WS-WD-0,25
This Festo industrial component, part number 540327, weighs 33.6 g and features a contact durability of 500 mating cycles with a leading contact 3 on socket 1 mm. Supplied with accessories and a cable designation, it connects a field device side via an angled, round M9x0.5 socket with 5 pins using a screw-type lock to a control side featuring an angled, round M9x0.5 plug with 5 pins and a screw-type lock. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540327
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540327.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Additional functions
- Contact 3 of socket 1 mm leading
- Cable designation
- With accessories
- Contact durability
- 500
- Product weight
- 33.6 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology
- M9x0.5
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 5
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, connection technology
- M9x0.5
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 5
- Electrical connection 2, type of mounting
- Screw-type lock
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 1.6 A
- Note on acceptable current load at 40°C
- 2.3 A for 0.34 mm² | 3.6 A for 0.49 mm²
- Surge resistance
- 1.5 kV
- Shield
- Yes
- Cable length
- 0.25 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, exible cable installation
- 75 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540327. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
