Festo
540328
Connecting cable KVI-CP-3-WS-WD-0,5

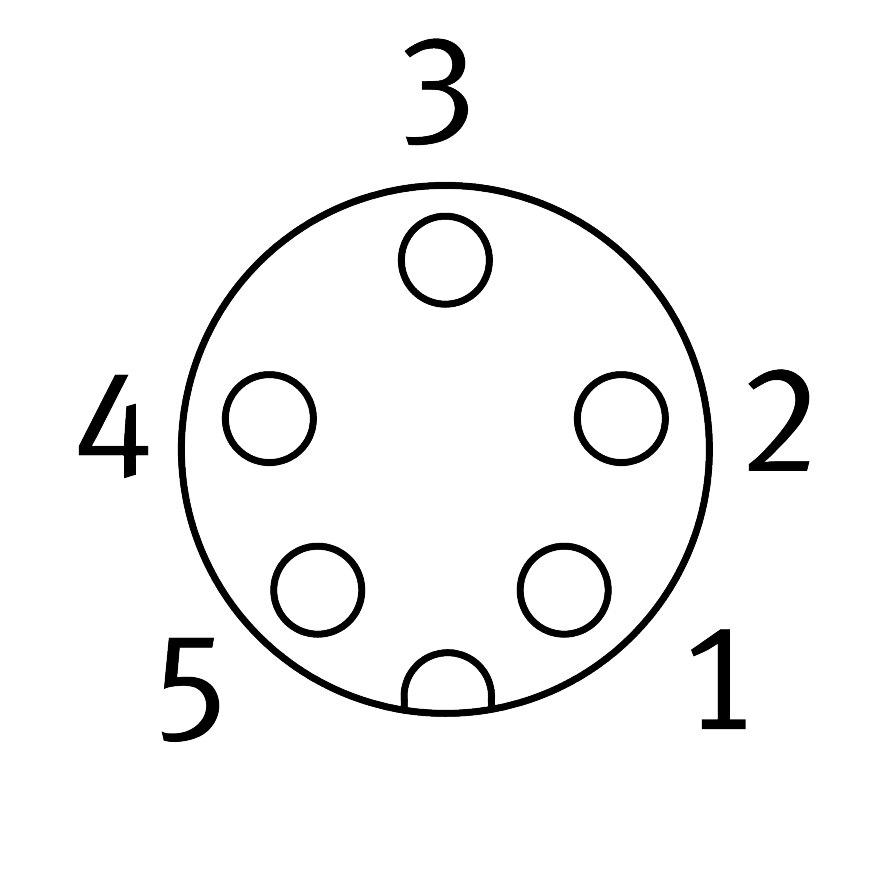

The Festo 540328 is a 45.4 g industrial component featuring a field device side with an angled, 5-pin M9x0.5 socket featuring a screw-type lock and contact 3 leading by 1 mm, alongside a control side with an angled, 5-pin M9x0.5 plug utilizing a screw-type lock. This accessory-included cable design supports a contact durability of 500 mating cycles with fully occupied pins on both connections. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540328
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540328.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Additional functions
- Contact 3 of socket 1 mm leading
- Cable designation
- With accessories
- Contact durability
- 500
- Product weight
- 45.4 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology
- M9x0.5
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 5
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, connection technology
- M9x0.5
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 5
- Electrical connection 2, type of mounting
- Screw-type lock
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 1.6 A
- Note on acceptable current load at 40°C
- 2.3 A for 0.34 mm² | 3.6 A for 0.49 mm²
- Surge resistance
- 1.5 kV
- Shield
- Yes
- Cable length
- 0.5 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, exible cable installation
- 75 mm
