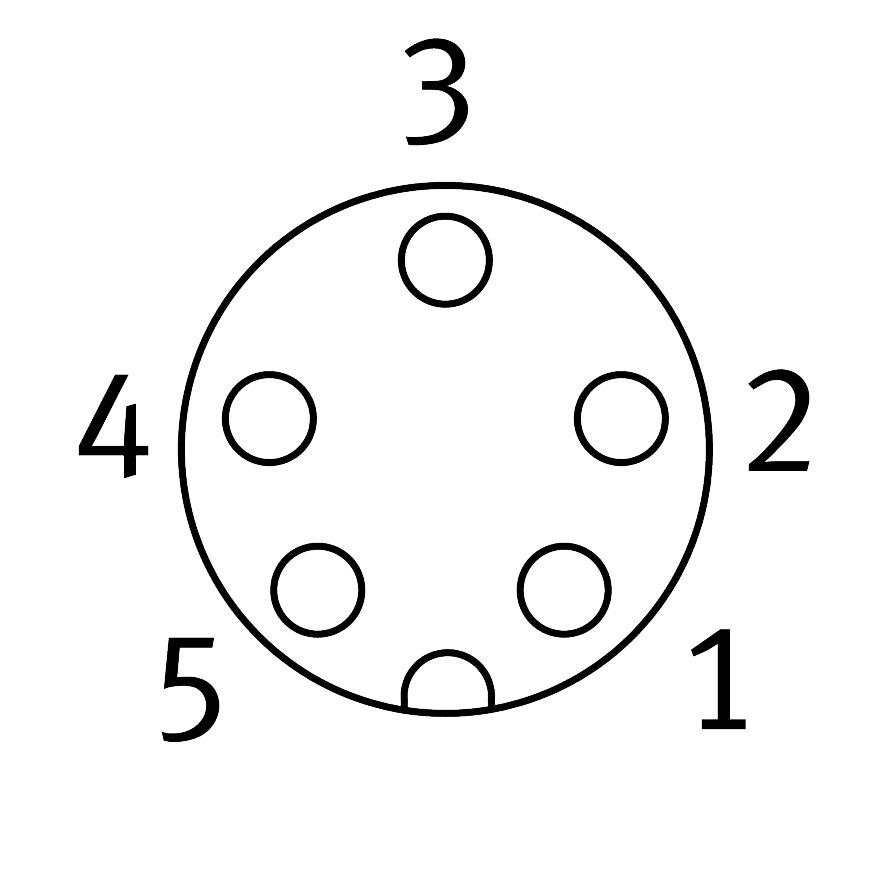

Reference imageConfirm configuration by manufacturer part number.
Festo
540330
Connecting cable KVI-CP-3-WS-WD-5
The Festo part number 540330 is an industrial component featuring an angled M9x0.5 round socket with 5 pins on the field device side and an angled M9x0.5 round plug with 5 pins on the control side, both utilizing screw-type lock mounting. This accessory-equipped assembly includes a leading contact 3 on socket 1 mm, provides a contact durability of 500 mating cycles, and weighs 257.8 g. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540330
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540330.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Additional functions
- Contact 3 of socket 1 mm leading
- Cable designation
- With accessories
- Contact durability
- 500
- Product weight
- 257.8 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology
- M9x0.5
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 5
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, connection technology
- M9x0.5
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 5
- Electrical connection 2, type of mounting
- Screw-type lock
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 1.6 A
- Note on acceptable current load at 40°C
- 2.3 A for 0.34 mm² | 3.6 A for 0.49 mm²
- Surge resistance
- 1.5 kV
- Shield
- Yes
- Cable length
- 5 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, exible cable installation
- 75 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540330. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
