Festo
540351

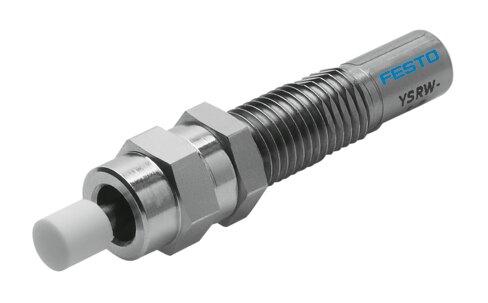

Shock absorber YSRW-DGC-32-KF
The Festo 540351 is a single-acting industrial component featuring a size 32 design and a pushing mode of operation with self-adjusting cushioning and a soft characteristic curve. Constructed with a high-alloy steel piston rod and rated for a maximum impact velocity of 3 m/s, it includes position sensing of none, a CRC 2 moderate corrosion stress rating, VDMA24364-B1/B2-L LABS conformity, and RoHS compliant materials. This unit operates within an ambient temperature range of -10 °C to 80 °C, supports any mounting position, and utilizes a type of mounting with a locknut. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540351
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540351.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Cushioning
- Self-adjusting | Soft characteristic curve
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 3 m/s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540351. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
