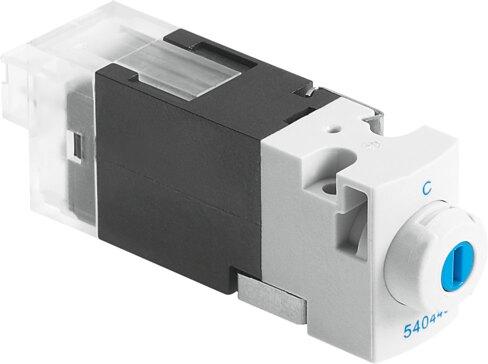

Reference imageConfirm configuration by manufacturer part number.
Festo
540443
Air solenoid valve MHA1-M1LH-3/2G-0,6-HC
The Festo 540443 is a directly controlled 3/2-way closed monostable industrial component featuring a 10 mm width, a nominal width of 0.65 mm, and a normal nominal flow rate of 10 l/min normalized to DIN 1343. This electrical poppet valve operates at voltages of 24V DC across an operating pressure range of 0 MPa to 0.8 MPa (0 bar to 8 bar, 0 psi to 116 psi) utilizing a soft sealing principle and a mechanical spring reset method. It incorporates an adjustable exhaust air function, sub-base pneumatic working ports, detenting and non-detenting manual override options, and offers an IP40 degree of protection with c UL us recognition under certificate UL MH19482. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540443
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540443.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 10 l/min
- Pneumatic working port
- Sub-base
- Operating voltage
- 24V DC
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Degree of protection
- IP40
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Nominal width
- 0.65 mm
- Width dimension
- 10 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Valve position ID
- Label
- Lap
- Negative overlap
- Note on forced dynamization
- Switching frequency at least once a week
- Signal status display
- LED
- Max. switching frequency
- 20 Hz
- Switching time off
- 4 ms
- On switching time
- 4 ms
- Duty cycle
- 100%
- Electrical power consumption
- 1.1 W
