Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
540510

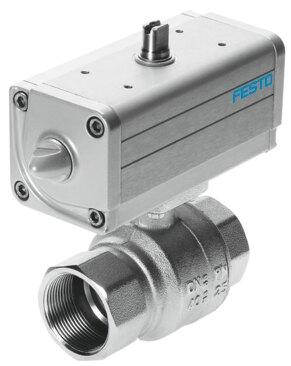

Ball valve actuator unit VZPR-BPD-22-R14
The Festo 540510 is an industrial component featuring a 2-way ball valve and quarter-turn electrical or pneumatic actuator with an Rp1/4 fitting connection and a nominal width DN of 15. This assembly operates at an actuator operating pressure of 1 bar to 8.4 bar, a fitting nominal pressure PN of 40, a medium temperature range of -20 °C to 150 °C, and an ambient temperature range of -20 °C to 80 °C. Designed for any mounting position using CNOMO or internal thread mounting, it includes a switching position indication where the knob direction matches the flow direction, a product weight of 1300 g, VDMA24364 Zone III LABS conformity, and corrosion resistance class 1. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540510
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540510.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve | Quarter turn actuator
- Actuation type
- Electrical | Pneumatic
- Mounting position
- Any
- Type of mounting
- CNOMO | With internal thread
- Fitting connection
- Rp1/4
- Switching position indication
- Knob direction = ow direction
- Nominal width DN
- 15
- Operating pressure of actuator
- 1 bar...8.4 bar
- Nominal pressure of tting PN
- 40
- Temperature of medium
- -20 °C...150 °C
- Ambient temperature
- -20 °C...80 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 1300 g
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540510. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
