Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

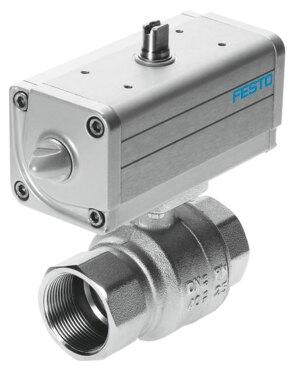

Reference imageConfirm configuration by manufacturer part number.
Festo
540513
Ball valve actuator unit VZPR-BPD-22-R34
The Festo 540513 is an industrial component featuring a 2-way ball valve with a quarter-turn actuator supporting electrical and pneumatic actuation types. This assembly includes an Rp3/4 fitting connection, a nominal width DN of 20, a nominal pressure PN of 40, and an actuator operating pressure ranging from 1 bar to 8.4 bar. It supports any mounting position via CNOMO or internal thread mounting, incorporates a switching position indication where the knob direction matches the flow direction, and has a product weight of 1500 g. Operating within a medium temperature range of -20 °C to 150 °C and an ambient temperature range of -20 °C to 80 °C, the unit conforms to VDMA24364 Zone III LABS (PWIS) and possesses a corrosion resistance class (CRC) of 1 for low corrosion stress. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540513
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540513.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve | Quarter turn actuator
- Actuation type
- Electrical | Pneumatic
- Mounting position
- Any
- Type of mounting
- CNOMO | With internal thread
- Fitting connection
- Rp3/4
- Switching position indication
- Knob direction = ow direction
- Nominal width DN
- 20
- Operating pressure of actuator
- 1 bar...8.4 bar
- Nominal pressure of tting PN
- 40
- Temperature of medium
- -20 °C...150 °C
- Ambient temperature
- -20 °C...80 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 1500 g
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540513. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
