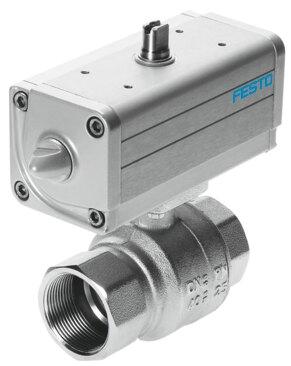

Reference imageConfirm configuration by manufacturer part number.
Festo
540514
Ball valve actuator unit VZPR-BPD-22-R1
The Festo 540514 industrial component features a 2-way ball valve with a quarter-turn actuator supporting electrical and pneumatic actuation types. Designed with an Rp1 fitting connection, a nominal width DN of 25, and a nominal pressure PN of 40, this 1800 g assembly operates at medium temperatures from -20 °C to 150 °C and ambient temperatures from -20 °C to 80 °C. It includes CNOMO and internal thread mounting types, any mounting position, actuator operating pressure from 1 bar to 8.4 bar, knob direction flow switching position indication, VDMA24364 Zone III LABS conformity, and CRC 1 low corrosion stress resistance. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540514
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540514.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve | Quarter turn actuator
- Actuation type
- Electrical | Pneumatic
- Mounting position
- Any
- Type of mounting
- CNOMO | With internal thread
- Fitting connection
- Rp1
- Switching position indication
- Knob direction = ow direction
- Nominal width DN
- 25
- Operating pressure of actuator
- 1 bar...8.4 bar
- Nominal pressure of tting PN
- 40
- Temperature of medium
- -20 °C...150 °C
- Ambient temperature
- -20 °C...80 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 1800 g
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540514. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
