Festo
540515

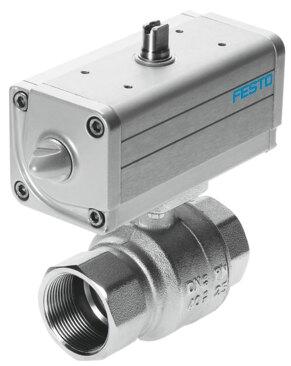

Ball valve actuator unit VZPR-BPD-22-R114
The Festo 540515 is a 2-way ball valve featuring a quarter turn actuator supporting both electrical and pneumatic actuation types. This component includes an Rp1 1/4 fitting connection, a nominal width DN of 32, a nominal pressure rating PN of 40, and an actuator operating pressure ranging from 1 bar to 8.4 bar. Designed with a product weight of 3200 g, it provides a switching position indication via knob direction corresponding to flow direction, universal mounting position capability, and CNOMO or internal thread mounting. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540515
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540515.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve | Quarter turn actuator
- Actuation type
- Electrical | Pneumatic
- Mounting position
- Any
- Type of mounting
- CNOMO | With internal thread
- Fitting connection
- Rp1 1/4
- Switching position indication
- Knob direction = ow direction
- Nominal width DN
- 32
- Operating pressure of actuator
- 1 bar...8.4 bar
- Nominal pressure of tting PN
- 40
- Temperature of medium
- -20 °C...150 °C
- Ambient temperature
- -20 °C...80 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 3200 g
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540515. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
