Festo
540516

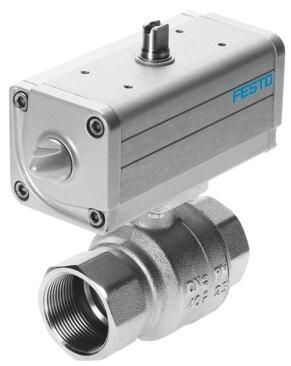

Ball valve actuator unit VZPR-BPD-22-R112
The Festo 540516 is an industrial component featuring a 2-way ball valve with a quarter turn actuator supporting both electrical and pneumatic actuation types. This assembly includes an Rp1 1/2 fitting connection, a nominal width DN of 40, a nominal pressure PN rating of 25, and an actuator operating pressure ranging from 1 bar to 8.4 bar. Designed with a product weight of 3,800 g, an internal thread and CNOMO mounting type, and any mounting position, it accommodates medium temperatures from -20 °C to 150 °C and ambient temperatures from -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540516
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540516.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve | Quarter turn actuator
- Actuation type
- Electrical | Pneumatic
- Mounting position
- Any
- Type of mounting
- CNOMO | With internal thread
- Fitting connection
- Rp1 1/2
- Switching position indication
- Knob direction = ow direction
- Nominal width DN
- 40
- Operating pressure of actuator
- 1 bar...8.4 bar
- Nominal pressure of tting PN
- 25
- Temperature of medium
- -20 °C...150 °C
- Ambient temperature
- -20 °C...80 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 3800 g
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540516. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
