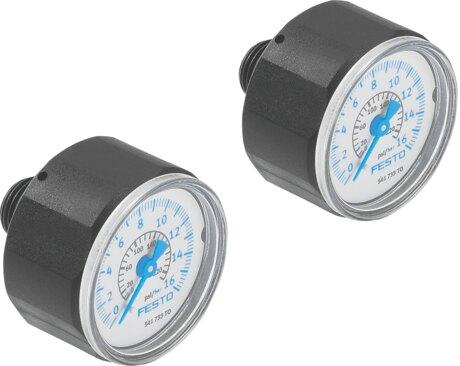

Reference imageConfirm configuration by manufacturer part number.
Festo
540781
Pressure gauge kit DPA-40-10-MA-SET
The Festo 540781 is a Bourdon tube pressure gauge featuring a nominal size of 27 and an external thread mounting design with an R1/8 pneumatic connection. Conforming to standard EN 837-1, this component delivers an operating pressure of 10 bar within an accuracy class 4 and provides an IP43 degree of protection for ambient temperatures from 5 °C to 60 °C. Constructed with RoHS compliant materials and VDMA24364-B1/B2-L LABS conformity, the unit weighs 16 g and supports any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540781
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540781.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 27
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- With external thread
- Operating pressure
- 10 bar
- Measurement accuracy class
- 4
- Degree of protection
- IP43
- Ambient temperature
- 5 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Mounting position
- Any
- Pneumatic connection
- R1/8
- Product weight
- 16 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540781. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
