Festo
540809

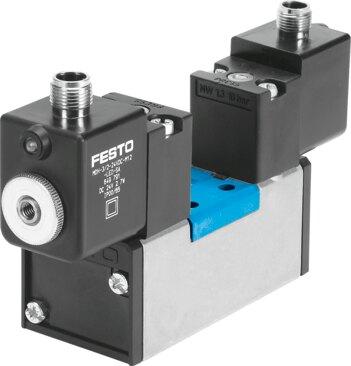

Air solenoid valve JMDH-5/2-D-1-M12D-C
The Festo 540809 is a 5/2-way bistable industrial component featuring a piloted piston gate valve design with an electrical actuation type and internal pilot air supply. Operating at 24V DC within an operating pressure range of 2 bar to 10 bar, this unit delivers a normal nominal flow rate of 1200 l/min through a nominal width of 8 mm and ISO 5599-1 size 1 sub-base or G1/4 pneumatic working ports. Built with soft sealing, adjustable exhaust air function, and an IP65 degree of protection, the 42 mm wide assembly conforms to ISO 5599-1 standards and includes a non-detenting manual override for installation in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540809
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540809.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 2 bar...10 bar
- Structural design
- Piston gate valve
- Degree of protection
- IP65
- Nominal width
- 8 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- ISO code
- 155
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Changeover time
- 18 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3800 µs
- Max. negative test pulse on 1 signal
- 4900 µs
- Coil characteristics
- 24 V DC: 2.7 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540809. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
