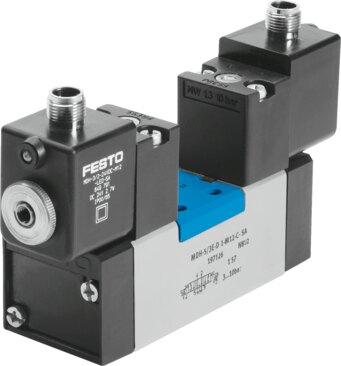

Reference imageConfirm configuration by manufacturer part number.
Festo
540815
Air solenoid valve MDH-5/3G-D-2-M12D-C
The Festo 540815 is an electrically actuated 5/3-way closed piston gate valve featuring a soft sealing principle and a nominal width of 11.5 mm. Operating on 24V DC within a pressure range of 3 bar to 10 bar, this piloted component delivers a normal nominal flow rate of 2300 l/min through ISO 5599-1 size 2 sub-base or G3/8 pneumatic working ports. It incorporates internal pilot air supply, adjustable exhaust air function, non-detenting manual override, mechanical spring reset, and IP65 protection in a 54 mm wide structural design conforming to ISO 5599-1 for mounting in any position. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540815
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540815.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Width
- 54 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2300 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-1 | G3/8
- Operating voltage
- 24V DC
- Operating pressure
- 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Nominal width
- 11.5 mm
- Width dimension
- 56 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- ISO code
- 256
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Switching time off
- 70 ms
- On switching time
- 35 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3800 µs
- Max. negative test pulse on 1 signal
- 4900 µs
- Coil characteristics
- 24 V DC: 2.7 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540815. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
