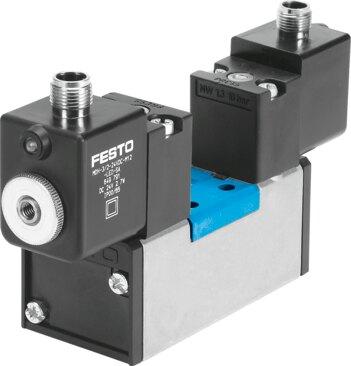

Name: Festo 540825 Air solenoid valve JMDH-5/2-D-3-M12D-C
Brand: Festo

Air solenoid valve JMDH-5/2-D-3-M12D-C

The Festo 540825 is a 5/2-way bistable industrial component featuring a piloted piston gate valve design with soft sealing and an ISO code of 355. Operating at 24V DC with an operating pressure range of 2 bar to 10 bar, this unit delivers a normal nominal flow rate of 4500 l/min through a 14.5 mm nominal width and G1/2 or size 3 ISO 5599-1 sub-base pneumatic working port. The assembly includes internal pilot air supply, adjustable exhaust air function, non-detenting manual override, and IP65 protection while conforming to ISO 5599-1 standards in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 540825
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 540825.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Width: 65 mm
Normal nominal ow rate (normalized to DIN 1343): 4500 l/min
Pneumatic working port: Sub-base, size 3 as per ISO 5599-1 | G1/2
Operating voltage: 24V DC
Operating pressure: 2 bar...10 bar
Structural design: Piston gate valve
Degree of protection: IP65
Nominal width: 14.5 mm
Width dimension: 71 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: Non-detenting
ISO code: 355
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
Changeover time: 21 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 3800 µs
Max. negative test pulse on 1 signal: 4900 µs
Coil characteristics: 24 V DC: 2.7 W
Permissible voltage uctuations: +/- 10%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Vibration resistance: Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
