Festo
540862

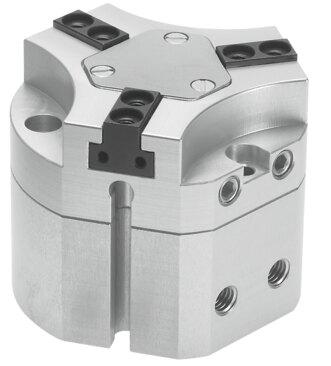

Three-point gripper HGDT-35-A
The Festo part number 540862 is a size 35 industrial component featuring a 3-point gripper function with three double-acting gripper jaws operated by an inclined plane and positively driven motion sequence. This pneumatic gripper delivers a gripping force per jaw at 6 bar of 492 N opening and 456 N closing, operating within a pressure range of 3 bar to 8 bar with a maximum operating frequency of 4 Hz. Position sensing is achieved via a proximity switch, supporting a repetition accuracy of 0.03 mm and a stroke of 4 mm per gripper jaw. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540862
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540862.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 35
- Stroke per gripper jaw
- 4 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 3
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- 3-point
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Gripping force per gripper jaw at 6 bar, opening
- 492 N | 164 N
- Gripping force per gripper jaw at 6 bar, closing
- 456 N | 152 N
- Operating pressure
- 3 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 4 Hz
- Min. opening time at 6 bar
- 40 ms
- Min. closing time at 6 bar
- 45 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 1.17 kgcm²
- Maximum force on gripper jaw Fz, static
- 400 N
- Maximum torque on gripper jaw, Mx static
- 15 Nm
- Maximum torque on gripper jaw, My static
- 10 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540862. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
