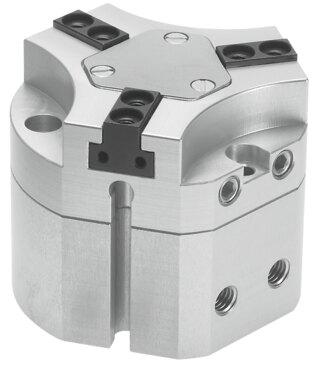

Reference imageConfirm configuration by manufacturer part number.
Festo
540867
Three-point gripper HGDT-40-A-G2
The Festo 540867 is a double-acting 3-point pneumatic industrial component featuring a size 40 design with a 6 mm stroke per gripper jaw and integrated gripping force backup during closing. Operating at pressures from 4 bar to 8 bar with compressed air conforming to ISO 8573-1:2010 [7:4:4], this structural unit utilizes an inclined plane and positively driven motion sequence to achieve a repetition accuracy of 0.03 mm and a maximum operating frequency of 4 Hz. Position sensing is accomplished via proximity switch, supporting a minimum opening time of 111 ms and a minimum closing time of 87 ms at 6 bar in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540867
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540867.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke per gripper jaw
- 6 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 3
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- 3-point
- Gripping force backup
- During closing
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 4 Hz
- Min. opening time at 6 bar
- 111 ms
- Min. closing time at 6 bar
- 87 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 5.23 kgcm²
- Maximum force on gripper jaw Fz, static
- 800 N
- Maximum torque on gripper jaw, Mx static
- 30 Nm
- Maximum torque on gripper jaw, My static
- 20 Nm
- Maximum torque on gripper jaw, Mz static
- 25 Nm
- Relubrication interval for guidance elements
- 5 MioCyc
- Max. mass per external gripper nger
- 70 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540867. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
