Festo
540871

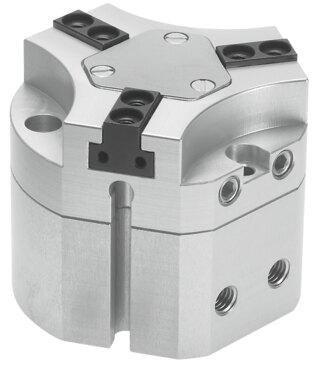

Three-point gripper HGDT-63-A
This Festo industrial component (Part Number 540871) is a double-acting 3-point pneumatic gripper featuring a size 63 designation, a stroke of 10 mm per gripper jaw, and an operating pressure range of 3 bar to 8 bar. It utilizes an inclined plane structural design with positively driven motion sequence, delivering a gripping force per gripper jaw at 6 bar of 1728 N opening and 1653 N closing, alongside a repetition accuracy of 0.03 mm and position sensing via proximity switch. The unit supports any mounting position, achieves a maximum operating frequency of 4 Hz, and requires minimum opening and closing times of 152 ms and 142 ms respectively at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540871
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540871.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Stroke per gripper jaw
- 10 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 3
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- 3-point
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Gripping force per gripper jaw at 6 bar, opening
- 1728 N | 576 N
- Gripping force per gripper jaw at 6 bar, closing
- 1653 N | 551 N
- Operating pressure
- 3 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 4 Hz
- Min. opening time at 6 bar
- 152 ms
- Min. closing time at 6 bar
- 142 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 28.77 kgcm²
- Maximum force on gripper jaw Fz, static
- 2500 N
- Maximum torque on gripper jaw, Mx static
- 80 Nm
- Maximum torque on gripper jaw, My static
- 50 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540871. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
