Reference imageConfirm configuration by manufacturer part number.
Festo
540874

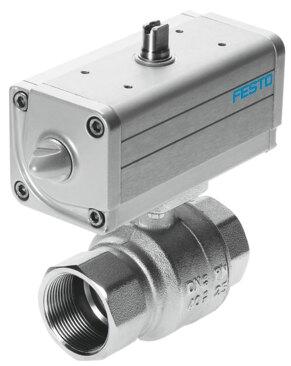

Ball valve actuator unit VZPR-BPD-22-R212
The Festo part number 540874 is a 2-way ball valve with a quarter turn actuator featuring electrical and pneumatic actuation types. This component weighs 7300 g with a nominal width DN of 63, an Rp2 1/2 fitting connection, and a nominal pressure of fitting PN of 25. It operates within a medium temperature range of -20 °C to 150 °C, an ambient temperature range of -20 °C to 80 °C, and an actuator operating pressure of 1 bar to 8.4 bar. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 540874
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 540874.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve | Quarter turn actuator
- Actuation type
- Electrical | Pneumatic
- Mounting position
- Any
- Type of mounting
- CNOMO | With internal thread
- Fitting connection
- Rp2 1/2
- Switching position indication
- Knob direction = ow direction
- Nominal width DN
- 63
- Operating pressure of actuator
- 1 bar...8.4 bar
- Nominal pressure of tting PN
- 25
- Temperature of medium
- -20 °C...150 °C
- Ambient temperature
- -20 °C...80 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 7300 g
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 540874. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
