Festo
541082

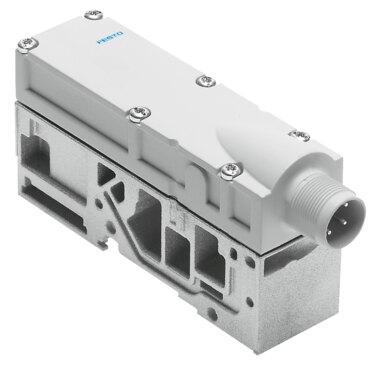

Supply plate VMPA-FB-SP-V
The Festo part number 541082 is an industrial component featuring a die-cast aluminum housing, a PA-reinforced cover, and a product weight of 200 g. This unit operates on a nominal DC voltage of 24 V with permissible voltage fluctuations of +/- 25%, incorporates a 3-pin M18 electrical connection, and provides an IP65 degree of protection within an ambient temperature range of -5 °C to 50 °C. Constructed in compliance with RoHS standards, it achieves a CRC corrosion resistance class of 1 and VDMA24364-B1/B2-L LABS conformity while holding c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541082
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541082.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal operating voltage DC
- 24 V
- Permissible voltage uctuations
- +/- 25%
- Certication
- c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 200 g
- Electrical connection
- 3-pin | M18
- Note on materials
- RoHS compliant
- Cover material
- PA-reinforced
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 541082. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
