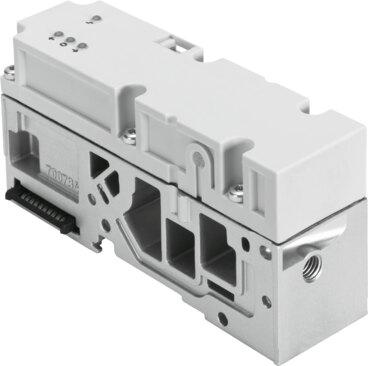

Name: Festo 541086 Pressure sensor VMPA-FB-PS-3/5
Brand: Festo

Pressure sensor VMPA-FB-PS-3/5

The Festo 541086 is a piezoresistive pressure sensor featuring an integrated display for measuring relative pressure across a range of 0 MPa to 1 MPa, 0 bar to 10 bar, or 0 psi to 145 psi with a pressure resolution of 0.001 bar and an accuracy of 2.5 percent full scale. Operating on a nominal DC voltage of 24 V with an operating range from 18 V to 30 V and reverse polarity protection, this component connects pneumatically and electrically via sub-base in any mounting position. It operates within a medium and ambient temperature range of -5 degrees Celsius to 50 degrees Celsius, and is certified as c UL us recognized with CE and UKCA markings in accordance with EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 541086
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 541086.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Measured variable: Relative pressure
Method of measurement: Piezoresistive pressure sensor with display
Pressure measuring range: 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
Pressure measuring range initial value: 0 MPa | 0 bar | 0 psi
Pressure measuring range end value: 1 MPa | 10 bar | 145 psi
Temperature of medium: -5 °C...50 °C
Ambient temperature: -5 °C...50 °C
Pressure resolution: 0.001 bar
Accuracy in ± % FS: 2.5 %FS
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Permissible voltage uctuations: +/- 25%
Reverse polarity protection: For operating voltage
Electrical connection: Via sub-base
Mounting position: Any
Pneumatic connection: Sub-base
Product weight: 200 g
Housing material: Die-cast aluminum | PA-GF
Display type: LED
Displayable unit(s): KPa | mbar

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 541086. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
