Festo
541087

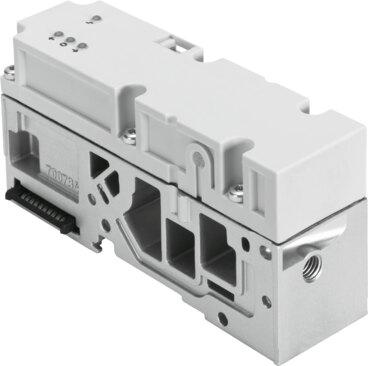

Pressure sensor VMPA-FB-PS-P1
The Festo 541087 is a piezoresistive pressure sensor with a display that measures relative pressure across a range of 0 MPa to 1 MPa, 0 bar to 10 bar, or 0 psi to 145 psi with a pressure resolution of 0.001 bar and an accuracy of 2.5 %FS. Designed with an M7 pneumatic connection, sub-base electrical connection, and an operating voltage range of 18 V to 30 V DC, this component operates within medium and ambient temperatures of -5 °C to 50 °C in any mounting position. It complies with c UL us recognition, RoHS material requirements, and carries CE and UKCA markings for EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541087
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541087.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor with display
- Pressure measuring range
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 1 MPa | 10 bar | 145 psi
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Pressure resolution
- 0.001 bar
- Accuracy in ± % FS
- 2.5 %FS
- DC operating voltage range
- 18 V...30 V
- Nominal operating voltage DC
- 24 V
- Permissible voltage uctuations
- +/- 25%
- Reverse polarity protection
- For operating voltage
- Electrical connection
- Via sub-base
- Mounting position
- Any
- Pneumatic connection
- M7
- Product weight
- 200 g
- Housing material
- Die-cast aluminum | PA-GF
- Display type
- LED
- Displayable unit(s)
- KPa | mbar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 541087. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
