Festo
541254

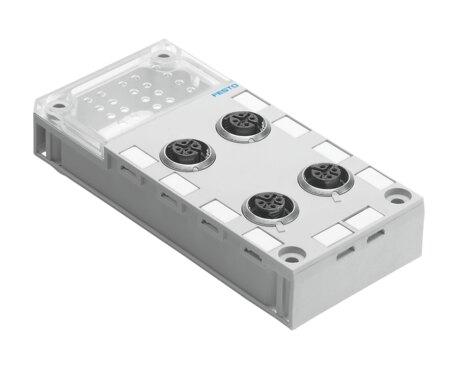

Manifold block CPX-AB-4-M12X2-5POL-R
The Festo part number 541254 is an industrial component featuring a 4-port, 5-pin M12 electrical connection with Speedcon and a shield on the metal thread. Constructed with a PA and PC housing, this RoHS compliant unit has a product weight of 87 g, a degree of protection of IP65 and IP67, a corrosion resistance class of CRC 1, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541254
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541254.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product weight
- 87 g
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Housing material
- PA | PC
- Additional functions
- Shield also on metal thread | Speedcon
- Electrical connection
- 4x port | 5-pin | M12 | Speedcon
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 541254. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
