Festo
541331
Connecting cable NEBU-M12G5-K-5-LE5
This Festo industrial component, part number 541331, is a 146 g socket featuring a straight M12x1 A-coded round connection with 5 pins, a screw-type lock, and two label holders, terminating in an open-ended 5-wire cable on the control side. Conforming to EN 61076-2-101, the unit operates across a DC and AC voltage range of 0 V to 60 V with a current rating of 4 A at 40° C, while supporting ATEX Zone 2 and Zone 22 explosion prevention and protection in accordance with its certificate. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541331
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541331.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 61076-2-101
- Explosion prevention and protection
- Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
- Cable designation
- With 2x label holders
- Product weight
- 146 g
- Electrical connection 1, function
- Field device end
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

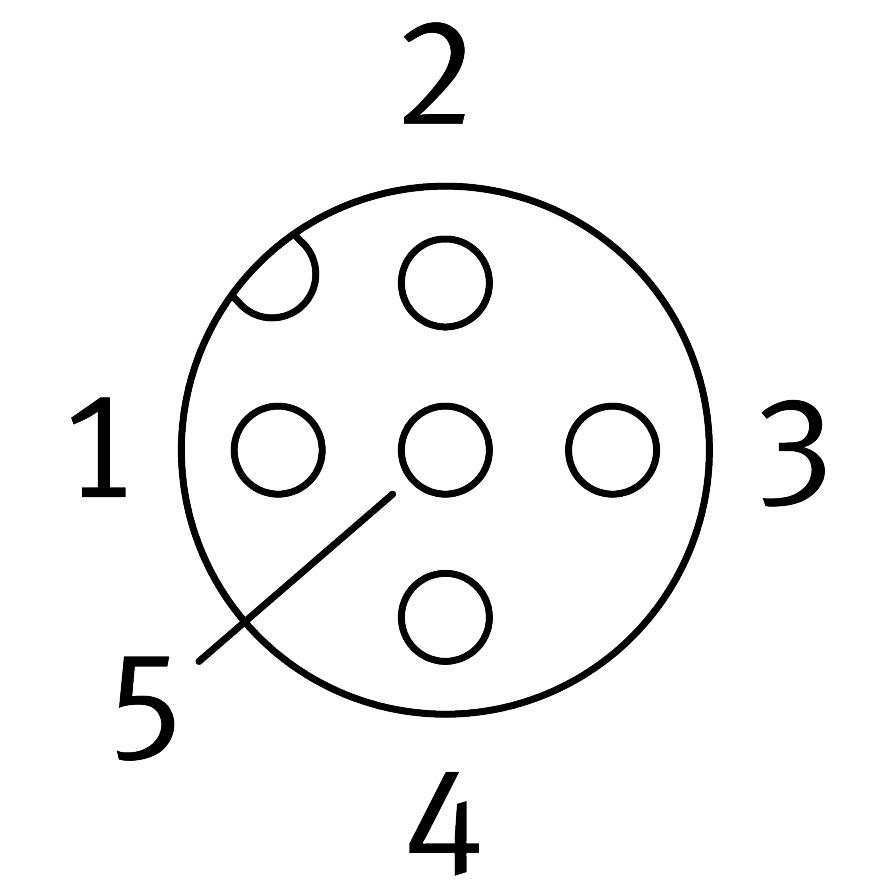

- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 5
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 5
- DC operating voltage range
- 0 V...60 V
- Operating voltage range AC
- 0 V...60 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 1.5 kV
- Cable length
- 5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Flexural strength: as per Festo standard | Test conditions on request | Energy chain > 5 million cycles, bending radius 75 mm
- Bending radius, xed cable installation
- 14 mm
- Bending radius, exible cable installation
- 46 mm
- Cable diameter
- 4.5 mm
