Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
541467
Air preparation combination unit MSB6N-1/2:H1N3M1-WP
The Festo 541467 is an MS series industrial component featuring a size 6 structural design that integrates a pressure regulator with a pressure gauge, standard filter, and standard mist lubricator. It operates within a pressure range of 2 bar to 12 bar, provides a regulation range of 1 bar to 12 bar, and achieves a normal nominal flow rate of 3500 l/min using compressed air or inert gases. Equipped with a fully automatic condensate drain, 40 µm filtration grade, plastic bowl guard, and a rotary knob actuator lock with detent, this unit weighs 2000 g and is rated for a moderate corrosion stress class of 2. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 541467
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 541467.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Fully automatic
- Structural design

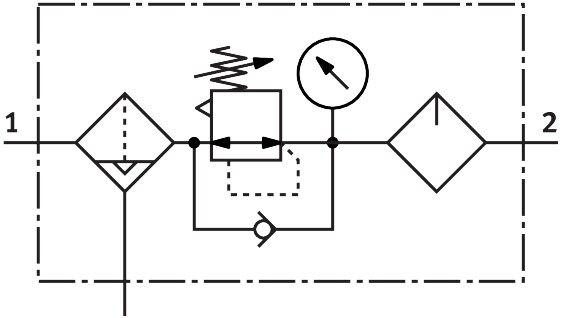

- Pressure regulator with pressure gauge | Standard lter | Standard mist lubricator
- Bowl guard
- Plastic bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 2 bar...12 bar
- Pressure regulation range
- 1 bar...12 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 3500 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:-]
- Product weight
- 2000 g
- Type of mounting
- With accessories
- Pneumatic connection 1
- 1/2 NPT
- Pneumatic connection 2
- 1/2 NPT
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
- Material of bowl
- PC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 541467. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
