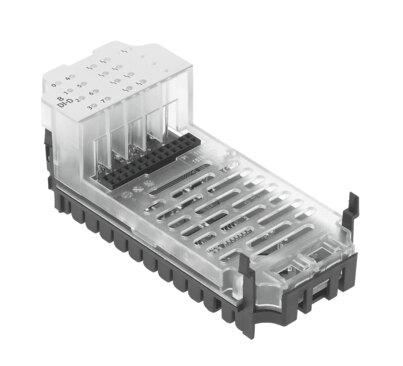

Name: Festo 541480 Input module CPX-8DE-D
Brand: Festo

Input module CPX-8DE-D

The Festo 541480 is an 8-channel industrial component featuring PNP input switching logic, IEC1131-T2 input characteristics, and a nominal DC operating voltage of 24 V with an intrinsic current consumption of 15 mA. Housed in PA-reinforced and PC materials measuring 50 mm by 107 mm by 50 mm, it operates within an ambient temperature range of -5 °C to 50 °C and includes integrated LED indicators for group diagnostics, channel diagnostics, and channel status. This module supports comprehensive parameterization options including input debounce time, signal extension, module monitoring, and short-circuit response, alongside a low corrosion resistance class of 1. Submit the exact part number, quantity, and application requirements to receive an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 541480
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 541480.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (incl. interlinking block and connection system) | 50 mm x 107 mm x 50 mm
Product weight: 45 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: Depending on terminal block
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
LABS (PWIS) conformity: VDMA24364-B2-L
Housing material: PA-reinforced | PC
LED indicators: 1 group diagnostics | 8 channel diagnostics | 8 channel status
Diagnostics: Short circuit/overload per channel
Parameterization: Input debounce time | Signal extension time | Response to short circuit | Module monitoring
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Intrinsic current consumption at nominal operating voltage: Type. 15 mA
No. of inputs: 8
Input characteristics: IEC1131-T2
Switching level: Signal 0: <= 5 V | Signal 1: >= 11 V
Input switching logic: PNP (positive switching)
Input debounce time: 3 ms (0.1 ms, 10 ms, 20 ms parameterizable)
Max. residual current of inputs per module: 0.7 A
Electrical isolation between channels: No
Electrical isolation between channel and internal bus: No
Fuse protection (short circuit): Internal electronic fuse per channel
