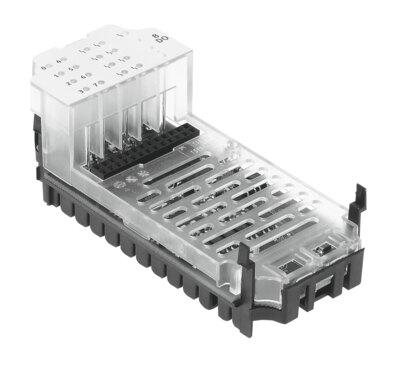

Name: Festo 541482 Output module CPX-8DA
Brand: Festo

Output module CPX-8DA

The Festo part number 541482 is an industrial component featuring 8 PNP switching outputs with a maximum power supply of 0.5 A per channel and a DC operating voltage range of 18 V to 30 V. Constructed with a reinforced PA and PC housing measuring 50 mm by 107 mm by 50 mm, this 49 g unit includes 1 group diagnostics, 8 channel diagnostics, and 8 channel status LED indicators. Parameterization options include failsafe, forcing, idle mode per channel, short circuit response, and module monitoring within an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 541482
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 541482.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (incl. interlinking block and connection system) | 50 mm x 107 mm x 50 mm
Product weight: 49 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: Depending on terminal block
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
LABS (PWIS) conformity: VDMA24364-B2-L
Housing material: PA-reinforced | PC
LED indicators: 1 group diagnostics | 8 channel diagnostics | 8 channel status
Diagnostics: Short circuit/overload per channel | Undervoltage of outputs
No. of outputs: 8
Parameterization: Failsafe per channel | Forcing per channel | Idle mode per channel | Response to short circuit | Module monitoring
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Intrinsic current consumption at nominal operating voltage: Type. 16 mA
Characteristic curve outputs: IEC1131-T2
Switching logic at outputs: PNP (positive switching)
Max. residual current of outputs per module: 4 A
Max. power supply per channel: 0.5 A (12 W lamp load)
Electrical isolation between channels: No
Electrical isolation between channel and internal bus: Yes, when using intermediate feed
Fuse protection (short circuit): Internal electronic fuse per channel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 541482. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
